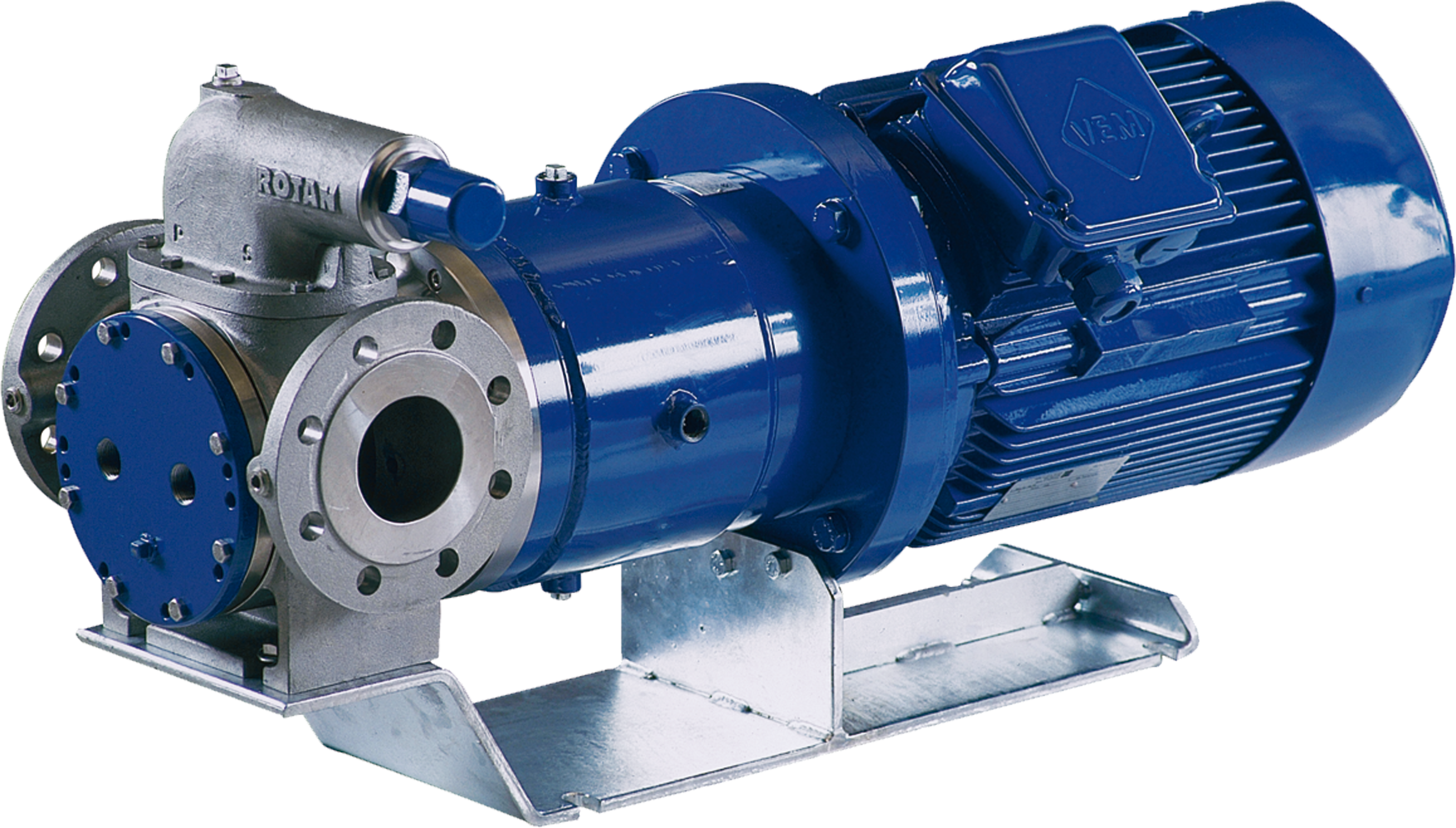

Magnetically coupled internal gear pump for ultimate protection against leakage. ED is for Environmental Duty. As only minimal maintenance is necessary, ED pumps will be a very economical solution compared with traditionally sealed pumps, especially where the application requires the use of double mechanical shaft seals. Key features and benefits: - Reversible direction of flow with double acting relief valve option available - Directed coupled gearbox with NEMA or IEC electric motor eliminating alignment issues - Adjustable rotor end clearance without opening the system to the atmosphere - Torque capabilities in excessive of 800 ft-lb - Flow rates max. 90 m3/h with differential pressure up to max. 16 bar. - Iron, Steel and Stainless Steel construction - Tungsten Carbide abrasive wear materials are available for abrasive duty applications

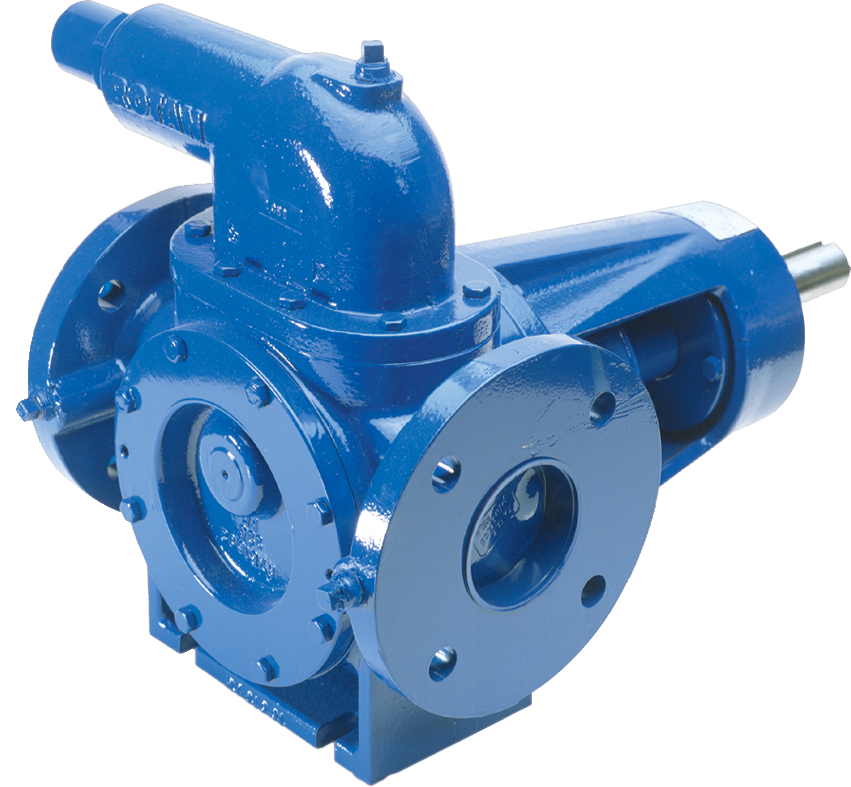

The HD gear pump are specifically designed for difficult applications Heavy Duty - Internal gear pumps in cast iron, for a wide range of viscous, non-corrosive liquids. HD pumps are specifically designed for difficult applications and those involving high viscosity liquids. They are known by their sturdy and simple construction and available with 90° angular configuration. Key features and benefits - Flexible sealing options - “True” back pull-out design - Opposing inlet and outlet connections with oversized ports - Shaft supported by two ball bearings in single sealed configuration - Self-priming with large suction capabilities - Low NPSH requirements - Self-draining, integral safety relief valve - No speed reduction required in six smaller sizes - Complete heating/cooling jacketing available - 90 degrees Port Orientation

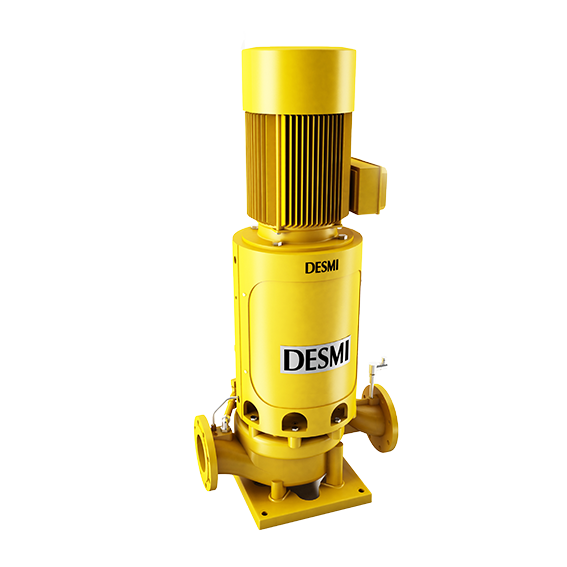

The NSL range of pumps represents high efficiency, low NPSH values, easy to install and low maintenance. The NSL series is widely used within different applications and markets. The DESMI NSL pump meets the requirements for: - High efficiency - Low NPSH values - Easy installation/service - Specific materials - Compact design - Standardized to modular design - Outstanding hydraulic design performance - Spacer-coupling options for easy maintenance - Robust shaft design - High efficiency impeller with low NPSH values - Self-priming ability with a separate built-on priming pump
